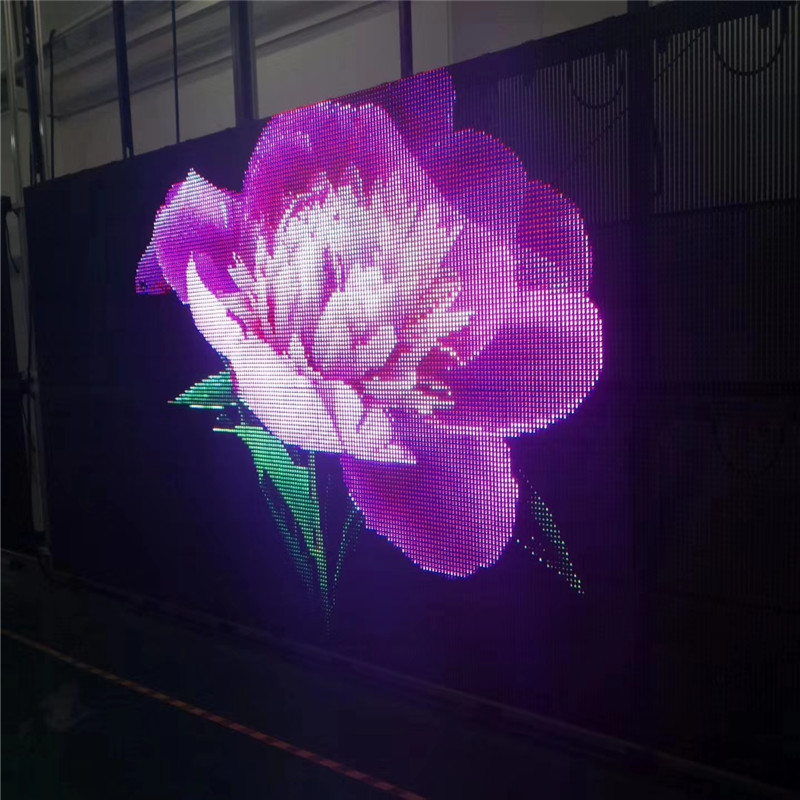

Waterproof Curtain Mesh Transparent Advertising Billboard Pantalla Video Wall P8.3 LED Display Screen
Function and Technology Character Introduction:
1. High strength, adjustable, can meet customer requirements according to the use environment.
2. The best uniformity, can solve the mosaic problem commendably, and the light consistency is excellent
3. Clear, exquisite and true display effects for pictures and text
4. Large viewing angle, 160 degrees horizontal line, within this range can be seen from all angles, no picture changes, no color cast
5. Each lamp can be repaired, so the maintenance cost is low and easy to repair.
6. Good uniformity, high consistency, large viewing angle, each lamp can be repaired
7. From material to finished product, from design to production, we control all steps, which is the guarantee of quality and reliability.
8. Minimalist design, thin and transparent, permeability 40%-80%, fanless design, no noise, good heat dissipation performance
Products Applications:
Used for LED light source for outdoor signs or signboards big building lighting, parks, bridges and other landscape lighting outline of various large buildings
SPECIFICATIONS Parameters:
| Model | P8.3 |
| Pixel pitch | 8.3-12.5mm |
| Cabinet size | 1000mm*500mm |
| Pixel density | 9600px/m² |
| Color | 1R1G1B |
| the optimal | 10-80m |
| Transparency | ≤55% |
| Weight | 15KG/m² |
| Viewing angle | 160° |
| Supply voltage (V) | 5 |
| Average power | ≤300W/m² |
| Max consumption | ≤800W/m² |
| Refresh rate | ≥1920Hz |
| White balance brightness | ≤6000W/m² |
| range of working temperature | -20℃—55℃ |
| Storage temperature range | -25℃—90℃ |
| Working humidity range | 10%-90% |
| Storage humidity range | 20%-90% |
| Mean time between failures | ≥6500 |
| life span | 100000 hours |
| Protection level | IP65 |
FAQ
1) Q:Does it support product customization?
A:Support customization
2) Q:If any products have problems,how to do?
A:Firstly,we hope you can perfect products when goods arrive your hands;
Second,All orders will give some free spare parts ,like led lamps or ICs ,you can do some simple reparing works.If you purchase LED screen,please don't forget to buy samll quantity module for spare.
3) Q:Why choose us?
A:We focus on quality and service to make your prices competitive in the local market.
4) Q:What’s your warranty of your products
A: usually 2 years, counted from the date goods reaching clients.
